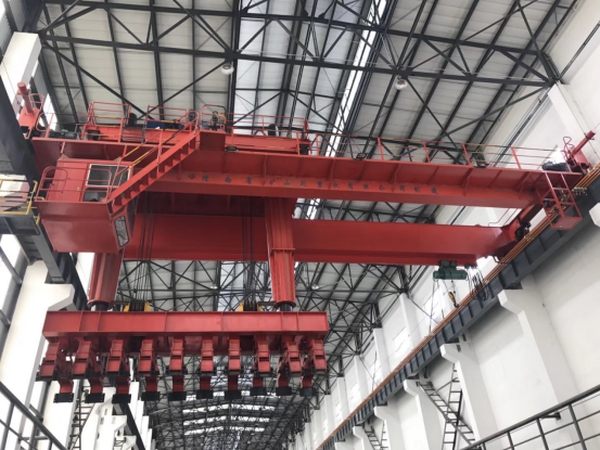

Carbon stacker crane (also known as carbon stacker crane, carbon block stacker crane) is a fully automatic multi-purpose carbon block stacker unit that is a key equipment in large-scale pre baked anode carbon block warehouses. It can clamp and release fresh and cooked anode carbon blocks, and transport them to designated locations through chain conveyors.

This product uses an automatic clamp to pick up 21 anode carbon blocks at a time, which can be stacked into 8 layers with a height of * * *. There is an I-beam installed under the bridge, and a 5-ton electric hoist is mounted on the I-beam. The hoist runs along the I-beam and can clamp carbon blocks with a single automatic carbon block clamp. It can also lift miscellaneous items in the workshop. The operation and lifting are all controlled by variable frequency speed regulation, and all operations can be completed in the control room. The use of mechanical gravity based automatic clamping instead of pneumatic clamping for carbon blocks greatly saves costs for manufacturers and users.

This product has received high praise from a wide range of users and has been widely used in major carbon factories across the country. It is an energy-saving product with a broad market and can replace imported products.
