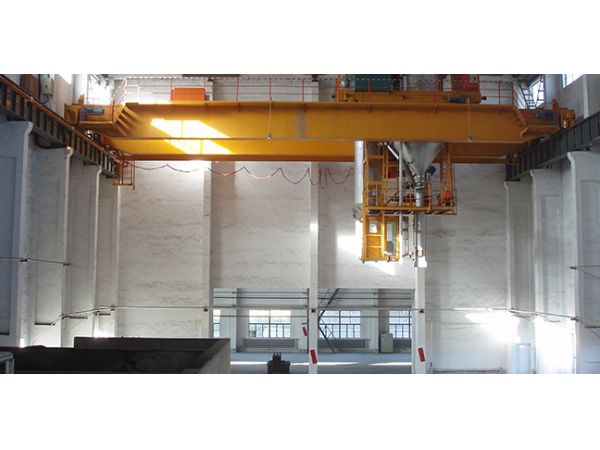

The multifunctional roasting crane refers to a specialized crane equipped with a vacuum material conveying system, dust removal and cooling system, and anode carbon block clamping device. It is a process line specific crane serving the anode carbon block roasting process, and is a specialized operating equipment for the anode carbon block roasting furnace.

The unit has the following main functions:

(1) Load the unburned anode block (raw block) into the roasting furnace pit;

(2) Fill the granular coke in the material box into the gap between the roasting furnace and the anode block, and cover the top;

(3) Suck the filling material from the furnace into the silo;

(4) Take out the burnt anode block (cooked block) from the baking furnace and send it to the conveyor belt or designated location after being fired;

(5) Other auxiliary lifting work is equipped with auxiliary suction pipes on the trolley, which can clean the flue and remove dust; There is a 10t electric hoist on the bridge for the transportation of burners and maintenance of the roasting furnace.

The whole machine is mainly composed of a tool cart, a bridge frame, a large vehicle operating mechanism, an electric hoist, and an electrical control system. The tool cart consists of a suction and unloading system, a clamping device, a trolley frame, a trolley operating mechanism, and a driver's cab. The whole vehicle adopts frequency conversion and PLC control.

This crane is mature and reliable, with good performance, easy operation, and advanced technology, and has received high praise from a wide range of users.
